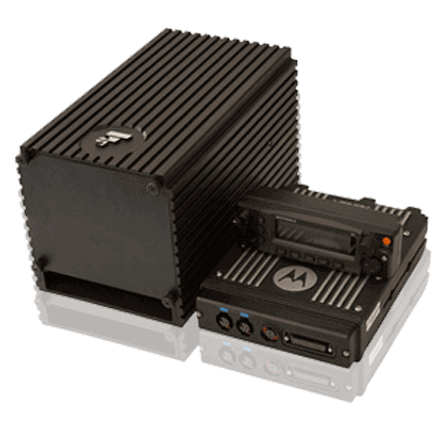

Digital Vehicular Repeater System (DVRS)

Digital Vehicular Repeater System (DVRS)

The P25 DVRS (Digital Vehicular Repeater System) is a small, rugged, self-contained, 10W radio base station integrated with Motorola remote mount APX™ or XTL™ series mobile radios. It improves portable radio coverage for police, fire and other emergency personnel by using the higher power of the mobile radio in the vehicle to extend the range of the portable back to the radio system.

DVRS Features

  • Programmable output power: 1-10 watts
  • Available in Full duplex or simplex operation
  • Supports P25 Digital / Analog operation
  • Available in VHF, UHF, 700 MHz and 800 MHz bands
  • Supports In-Band or Cross-Band configurations
  • Integrates with remote mount APX™6500, APX7500, XTL™2500 and XTL 5000 mobile radios
  • Operates through mobile radio control head
  • Superior multi-unit operation
  • Transparent P25 encryption pass-through
  • Extends key P25 trunking features onto conventional simplex or duplex channel
  • Sold exclusively through Motorola Solutions

DVRS Downloads

Brochures

ASTRO 25 Two-way Radios At a Glance: Safety Redefined
P25 Digital Vehicular Repeater System - Police
P25 Digital Vehicular Repeater System - Fire
P25 Fixed Mount Digital Vehicular Repeater System
P25 Transportable Digital Vehicular Repeater System

White Papers

Mission Critical Communications: Designed to a Tougher Standard

Product Photos

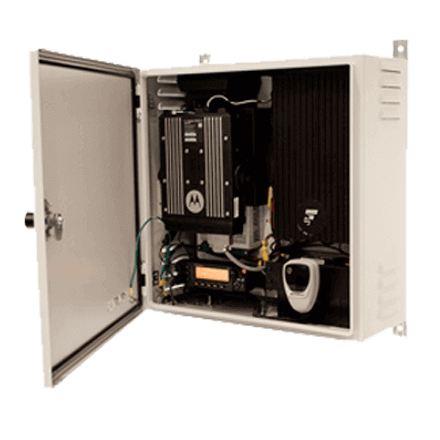

P25 Fixed Mount Digital Vehicular Repeater System

Fixed Mount Digital Vehicular Repeater System

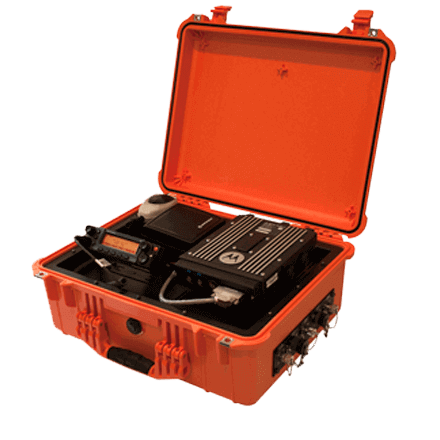

P25 Transportable Digital Vehicular Repeater System

Transportable Digital Vehicular Repeater System

Vehicle Radio Extender (VRE)

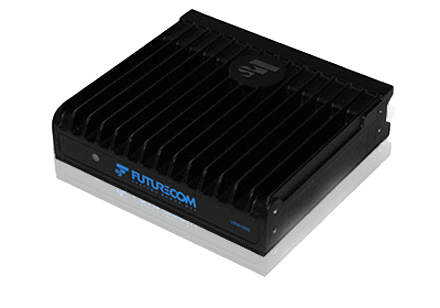

VRX1000 Vehicle Radio Extender

A small and compact solution that is budget friendly, the VRX1000 provides federal agencies, state patrol and public safety first responders the ability to communicate on their portable radios in a mobile-only coverage area. Equipped with cross-band and in-band performance, and available in 700/800 MHz VHF and UHF frequencies, the VRX 1000 is compatible with P25 APX 7500, APX6500 and APX 4500 mobile radios.

VRX1000 Features

  • Programmable output power: 0.5 - 3 watts
  • Simplex operation.
  • Analog operation standard with P25 software upgrades available.
  • Available in VHF, UHF, 700/800 MHz bands.
  • Integrates with remote mount APX™4500, APX™6500 and APX™7500 mobile radios.
  • In-Band or Cross-Band configurations.
  • Operates through mobile radio control head.

VRX1000 Downloads

VRX1000 Vehicle Radio Extender Data Sheet
